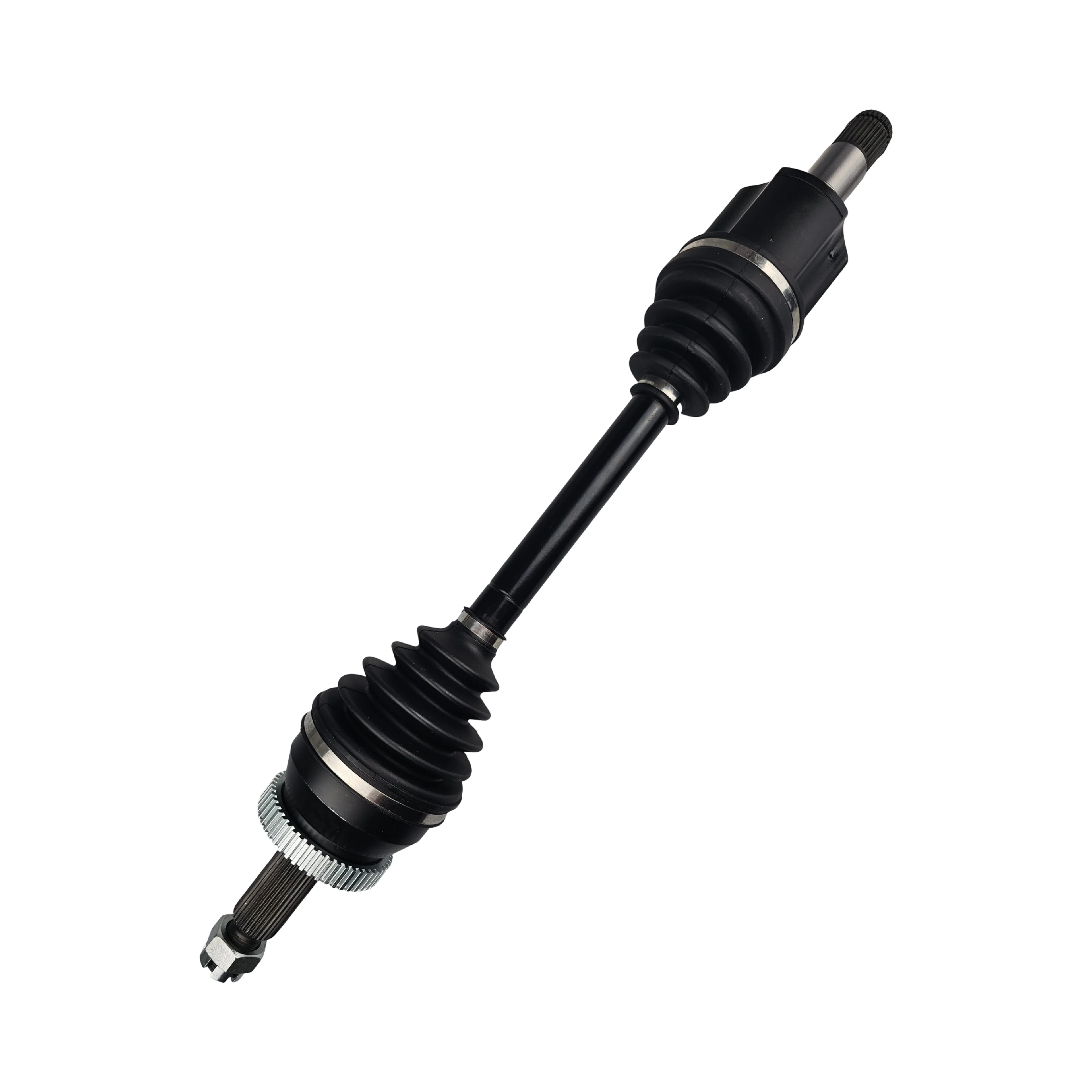

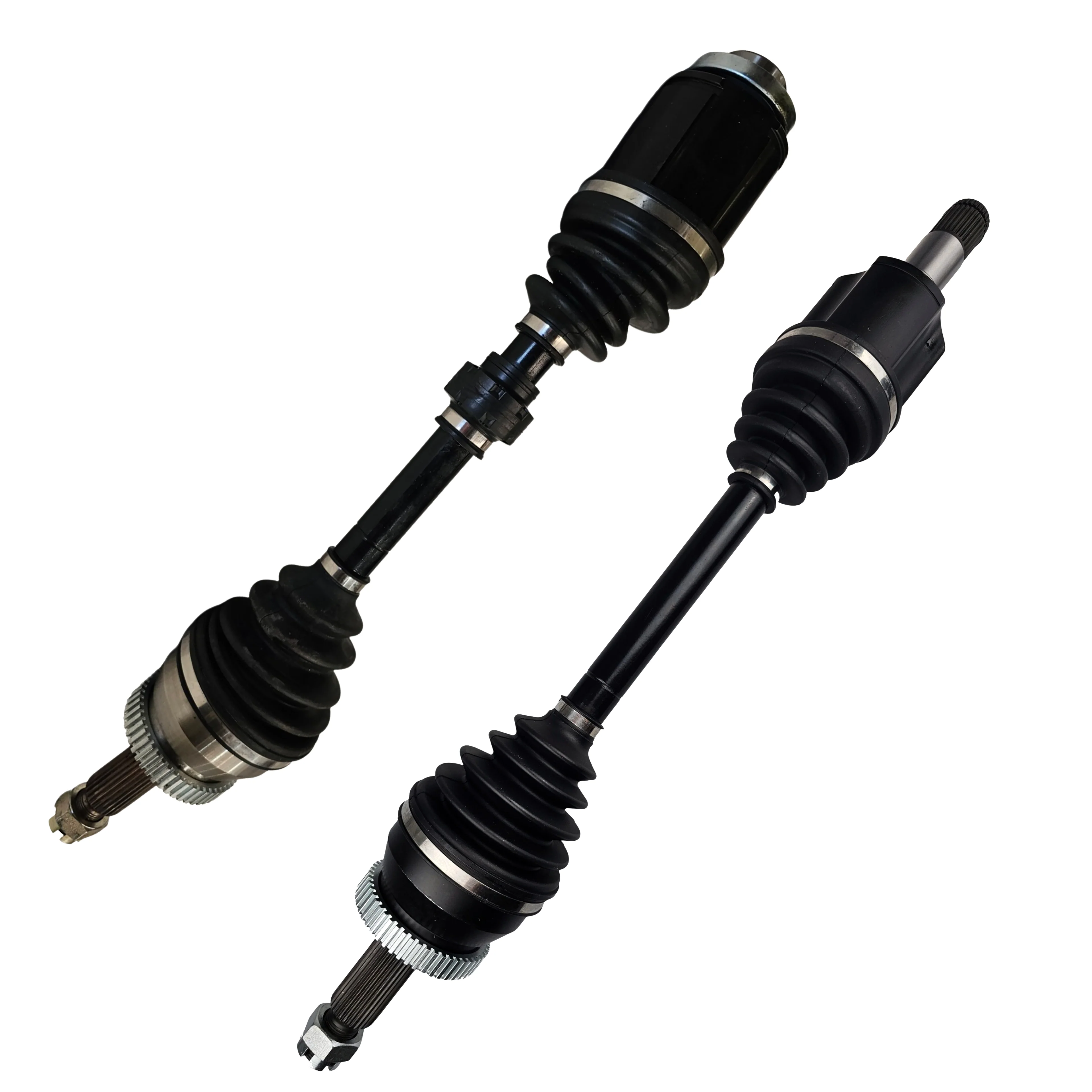

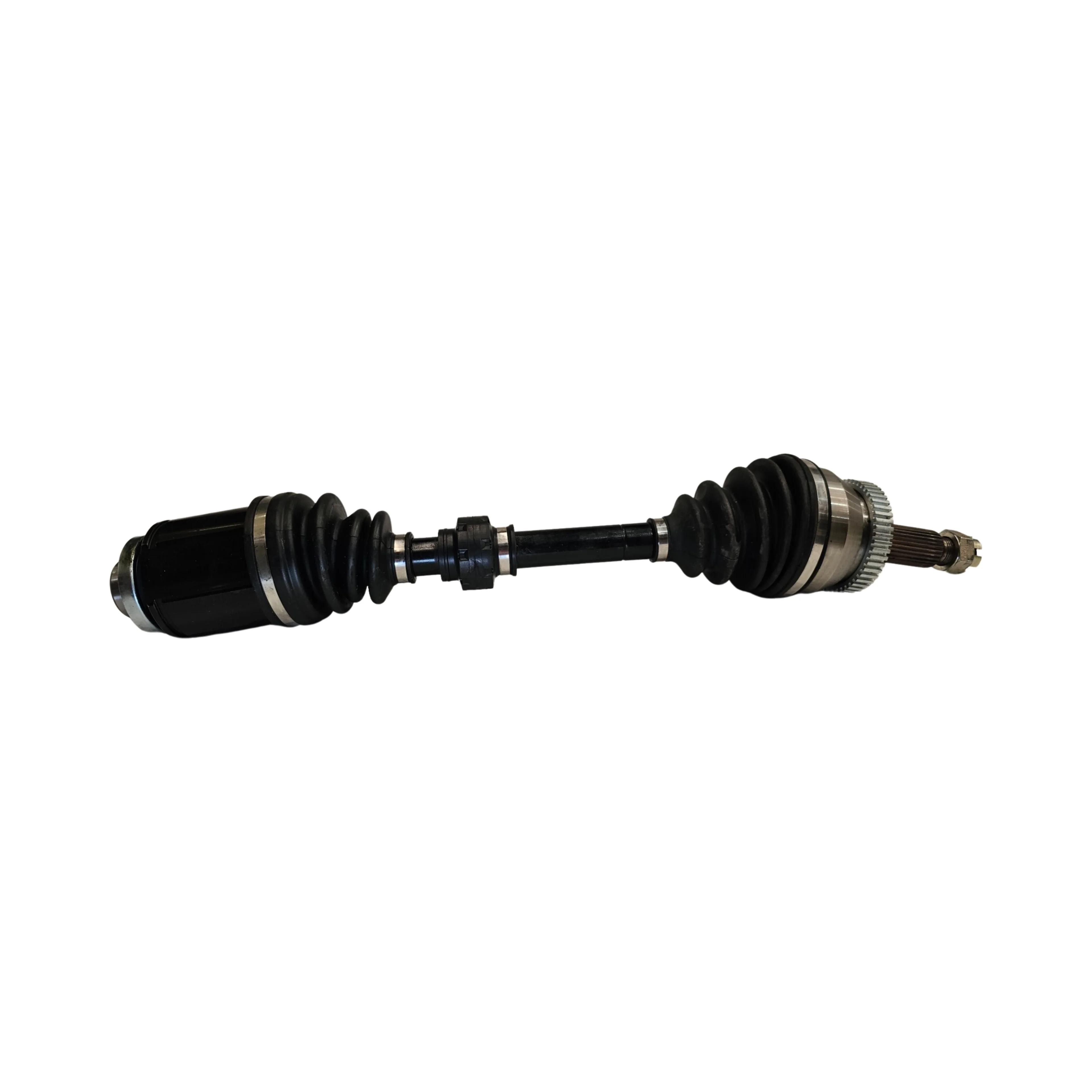

PAIR Left Right CV Axle Drive Shaft For Hyundai Santa Fe CM 2.2L 3.3L 4WD FWD
CV Axle Drive Shaft - Pair Left and Right Hand Side Automatic Manual 4WD FWD
Pair kit, manual only for models 11/2009 - 08/2012 with chassis SH81X
Built tough to OEM specifications using heat-treated chrome steel; maximizing product life. High-quality Neoprene dust boots and stainless steel clamps helps to prevent contamination. Moly grease for working at varying angles and speeds without friction, at high revolutions.
Vehicle Fitment
Models Including Sub Models:
- Hyundai Santa Fe CM SH81X 2.2L D4HB 4WD MT AT (11/2009 - 08/2012) Manual Only
Includes Sub-models CRDi, Elite CRDi, Highlander CRDi, SLX CRDi, Trail CRDi - Hyundai Santa Fe CM SH81W SG81W 2.2L D4EB 4WD (11/2006 - 10/2009) Manual & Automatic
Includes Sub-models SX CRDi, SLX CRDi, Elite CRDi
- Hyundai Santa Fe CM SH81E SG81E 3.3L G6DB (07/2007 - 11/2008) Manual & Automatic
Includes Sub-models SX, SLX
Sizing and Specifications
Left Hand Side
- Length (Compressed): 656mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side: 28
- ABS Ring Teeth: 52
Right Hand Side
- Length (Compressed): 611mm
- Spline Count - Outer/Wheel Side: 30
- Spline Count - Inner/Diff Side - Female: 26T and 2 Keyway Slots
- ABS Ring Teeth: 52
- Hub Nut: M22 x 1.5
What's Included
- 2 x CV Shafts
Our comprehensive range of constant velocity driveshafts is continuing to lead the way in the driveline aftermarket. The excellent performance and quality has resulted in their growing popularity. The range now boasts over 750 individual part numbers, which covers the vast majority of passenger and 4WD applications on Australian roads today. All our CV driveshafts are covered by a 12 month / 20,000 km warranty. Please note: this excludes CV Boots, which are only warranted for 3 months from date of purchase.
